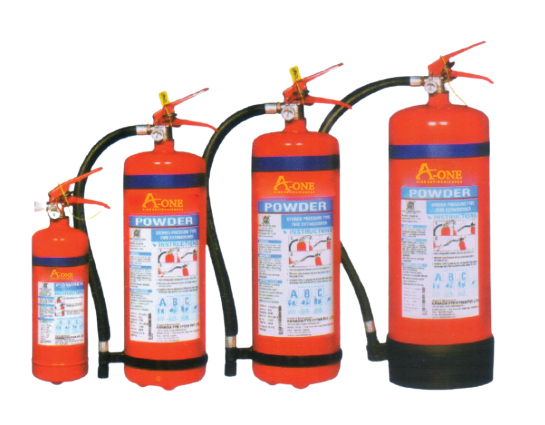

POWDER EXTINGUISHERS
A-ONE STORED PRESSURE Dry Powder fire extinguishers are characterized by their high performance, simple method of operation and rapid fire knock down capability. They are suitable for tackling fires involvingfreely burning materials, petrol & oils, gas & electrical equipment. They are ideal for vehicle & marine risks. A-One powder extinguishers contain high performance powder to achieve high Fire Rating.
FEATURES
Mono Ammonium Phosphate-based dry chemical powder confirms to14609 and is capable of fighting class A. B, C & Electrical fires
BIS Approved ( IS 15683 )
CE Certified (Marked On-Demand
High-quality pure polyester powder coating
Controlled discharge.
Brass nickel-plated head valve with simple squeeze operation
Unique gauge testing system (UGTS)
Easy & more economical to maintain & service
Rechargeable and easy to service
Large loop Stainless steel Pull pin
High-quality EPDM Rubber braided hose is far more Flexible than the normal rubber used in hose pipe and also far less prone to cracks.

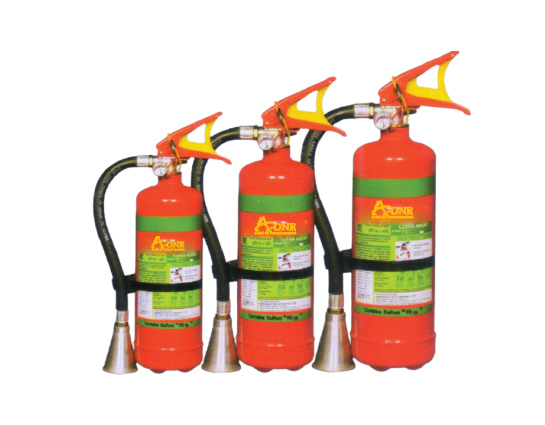

DuPont FE 36 CLEAN AGENT
A-ONE FE 36 clean agent extinguishers have effective extinguishing action, environmentally acceptable, and an excellent alternative for HALON 1211. Clean Agent HFC-236fa is non-corrosive, electrically non-conductive, and free of residue. t is ideally suited for protecting high-value equipment
FEATURES
FE 36(HFC-236fa) Based Extinguishing Agent capable of fighting class A, B, C & Electrical fire
BIS Approved ( IS 15683 ) & CE certified (Marked On-Demand)
High-Performance Extinguishing agent environmentally safe with ZERO ODP
High-quality pure polyester powder coating
FE 36 (HFC - 236fa) is an electrically Non-Conductive & low in toxicity Protect data in the process, reduces equipment damage, facilitate fast return to service.
High-Quality pure polyester powder coating
Unique gauge testing system(UGTS)
High-Quality EPDM Rubber Braided Hose is far more Flexible than the normal rubber used in hose pipe and also far less prone to cracks
Maximum visibility during Discharge.
Large loop Stainless steel Pull pin
No Electrical Conductivity Back to the operator
No Thermal or Static Shock

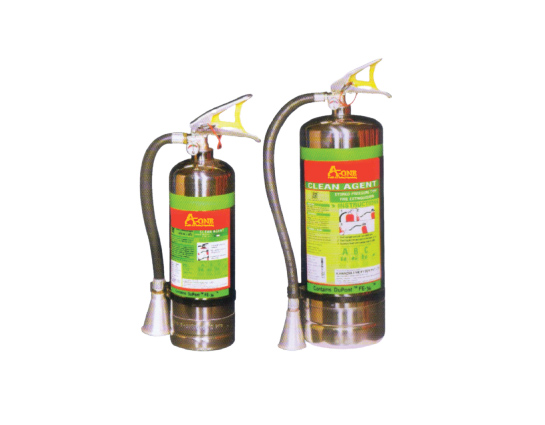

DuPont FE 36 CLEAN AGENT(SS Body)
A-ONE FE 36 clean agent extinguishers have effective extinguishing action, environmentally acceptable, and an excellent alternative for HALON 1211. Clean Agent HFC-236fa is non-corrosive, electrically non-conductive, and free of residue. It is ideally suited for protecting high-value equipment
FEATURES
Smooth & Polished Stainless Steel body
FE 36(HFC-236fa) Based Extinguishing Agent capable of fighting class A, B. C & Electrical fire.
BIS Approved ( IS 15683 ) & CE certfified
High Performance Extinguishing agent environmentally safe with ZERO ODP
FE 36 (HFC - 236fa) is an electrically Non Conductive & low in toxicity
Protect data in process. reduces equipment damage, facilitate fast return to service
Smooth Finish & also available with high quality PP powder coating
Unique gauge testing system(UGTS)
High Quality Epdm Rubber Braided Hose is far more Flexible than the normal rubber used in hose pipe and also far less prone to cracks
Large loop Stainless steel Pull pin
No Electrical Conductivity Back to the operator

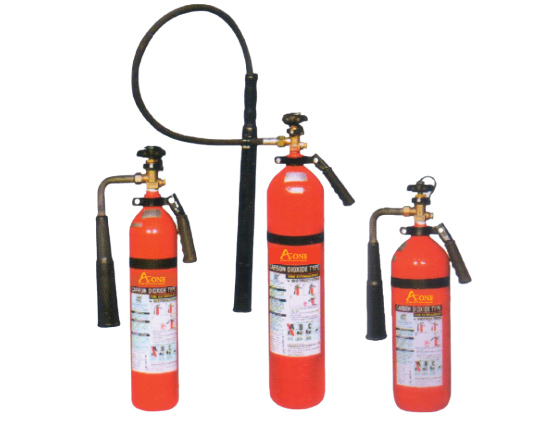

CARBON DIOXIDE TYPE
A-ONE GAS fire extinguishers are characterized by their high performance for fires involving an electrical rick like computers, office equipment and generators etc. CO2 is non-conductive, clean and safe, ensuring minimal damage to electrical equipment and furnishings
Available in squeeze grip as well as in wheel type.
Suitable for Class B, Class C & Electrical fire risks
FEATURES
Carbon Di Oxide is Colorless, Odorless, Non Toxic and provides rapid knockdown of industrial fires.
BIS Approved (IS: 15683)
BIS Approved ( IS 15683 ) & CE certfified
The body is made up of Seamless Manganese Steel as per IS 7285 and CCOE/PESO approved
High-quality Enamel Paint
Controlled discharge
Brass head valve with a simple squeeze or wheel operations provided with pressure relief disc
Rechargeable and easy to service
Non-conductive agent for electrical use without risk to the operator
CO2 gas disappears quickly leaving no residue
Swivel horn for 2 & 3 kg with no freeze burns, with greater directional control of CO2 discharge through horn rotation feature.

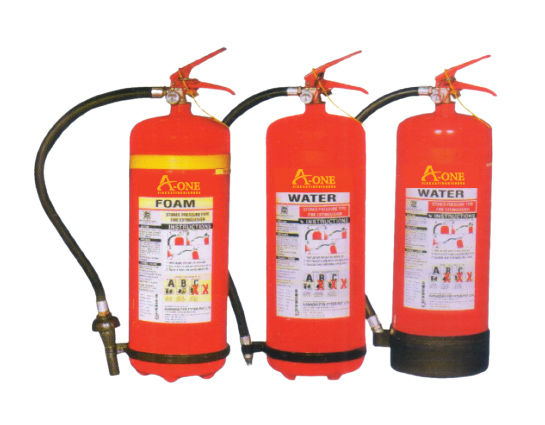

FOAM & WATER TYPE STORED PRESSURE
A-One Stored Pressure Foam & Water fire extinguishers are ideal for fires involving volatile liquids and freely burning materials such as paper, cloth, wood and furniture.
Note : Mechanical Foam & Water extinguishers are not suitable for fires involving electrical risk.
Water Type Suitable
Foam Type Suitable for for Class A Fire Risk Class A and Class B Fire Risk
FEATURES
Aqueous Film Forming Foam (AFFF) is capable of fighting Class A and Class B fires
Water types are capable of fighing class A fire efectively
BIS Approved ( IS 15683 )
CE Certified (Marked On Demand)
High quality pure polyester powder coating
Spray nozzle to provide high fire rating
Controlled discharge
Brass nickel plated head valve with simple squeeze operation
Unique gauge testing system (UGTS)
Rechargeable and easy to service
High quality EPDM Rubber braided hose is far more Flexible than the normal rubber used in hose pipe and also far less prone to cracks.
Large loop Stainless steel pull Pin

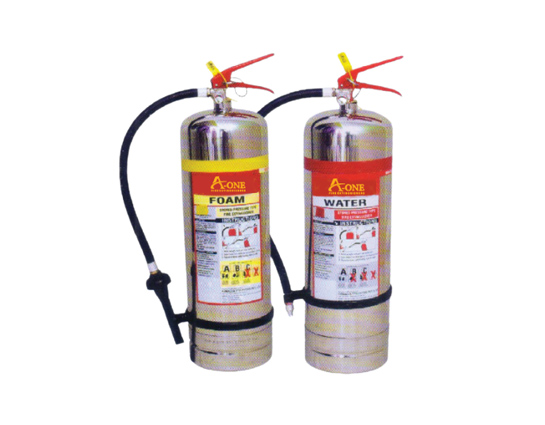

FOAM & WATER TYPE STORED PRESSURE (SS BODY)
A-ONE Stored Pressure Foam & Water extinguishers are ideal for fires involving volatile liquids and freely burning materials such as paper, cloth, wood and furniture.
Note : Mechanical Foam & Water extinguishers are not suitable for fires involving electrical risk.
Water Type Suitable for Class A Fire Risk
Foam Type Suitable for Class A and Class B Fire Risk
FEATURES
Smooth & Polished Stainless Steel body
AFFF Aqueous Film Forming Foam Agent capable of fighting class A, B fire & Water capable of fighting class A fifire
CE Certified
Smooth finish & also available with high quality PP powder coating
Spray nozzle to provide high fire rating
Choice of capacity 6 Ltrs. & 9 Ltrs
Controlled discharge
Brass nickel plated head valve with simple squeeze operation
Unique gauge testing system (UGTS)
Rechargeable and easy to service
High quality EPDM Rubber braided hose is far more Flexible than the normal rubber used in hose pipe and also far less prone to cracks.

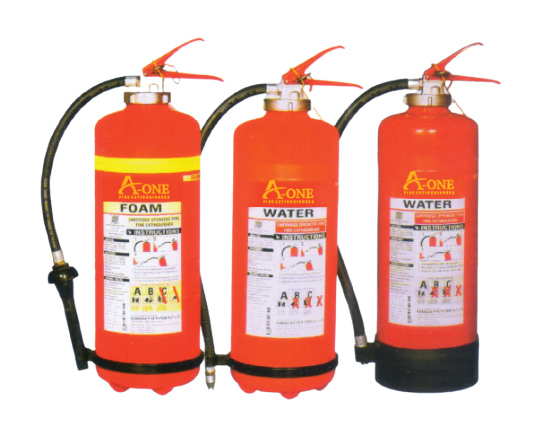

FOAM & WATER CO, CARTRIDGE TYPE
A-ONE Cartridge operated Foam fire extinguishers are ideal for fires involving volatile liquids and freely burning materials such as paper, cloth, wood and furniture.
Note : Mechanical Foam & Water extinguishers are not suitable for fires involving electrical risk.
Water Type Suitable
Foam Type Suitable for for Class A Fire Risk Class A and Class B Fire Risk
FEATURES
Aqueous Film Forming Foam (AFFF) is capable of fighting Class A and Class B fifires
Water types are capable of fighting class A fire effectively
BIS Approved ( IS 15683 )
CE Certified (Marked On Demand)
High quality pure polyester powder coating
Spray nozzle to provide high fire rating
Controlled discharge
Brass nickel plated head valve with simple squeeze operation
Unique gauge testing system (UGTS)
Rechargeable and easy to service
High quality EPDM Rubber braided hose is far more Flexible than the normal rubber used in hose pipe and also far less prone to cracks.
Large loop Stainless steel pull Pin.

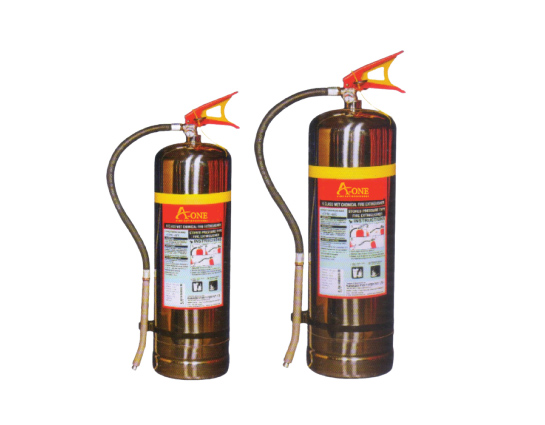

K CLASS KITCHEN FIRE EXTINGUISHERS
Class K Fires most often occur where cooking media such as cooking oils. greases and animal fats are used
Kitchen Fire extinguishers are designed to put out such kinds of Fires safely and effectively in residential and commercial kitchens
FEATURES
Smooth & Polished Stainless Steel body.
EPDM Rubber braided Discharge hoses for long life.
Discharge Nozzle is made up of Aluminium and design allows a broad, dispersed discharge of agent that delivers a high volume, low-velocity delivery of wet chemical which does not cause the cooking oil to splash.
Changes in frying oils from animal fats to vegetable oils have reduced the ability of Multipurpose ABC Fire Extinguishers to extinguish many kitchen fires. As we know Vegetable oils have a much higher auto ignition temperature than animal fats because of this Heat breaks down the weaker foam layer created and re ignition takes place.
In addition, these wet chemical agents pose minimal damage threat to hot appliances.

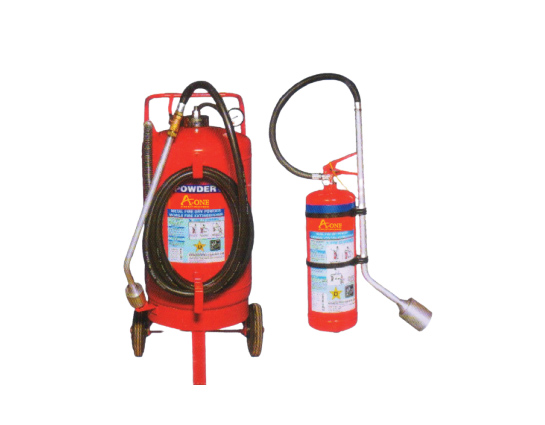

D CLASS METAL FIRE EXTINGUISHERS
A-ONE make Class D Fire Extinguisher s are designed to tackle Flammable metal fires because Ordinary dry chemical powders are not suitable for fighting metal fires or even water & foam type too as metals react violently with metals.
FEATURES
The specially designed applicator is particularly suited for fighting Class D fires. The design is such a way that the operator can stand away from extreme heat and toxic fumes. Other features are non-dispersing agent and easily controlled.
EPDM Rubber braided Discharge hoses for long life.
PRINCIPLE OF OPERATION
D type Fire Extinguishers contains a blended Sodium Chloride based dry powder extinguishing agent. Heat from the fire causes it to cake and form a crust excluding air and dissipating heat from burning metal.
Metal fires involving magnesium, sodium, potassium, and sodium-potassium alloys can be successfully extinguished with Sodium Chloride based extinguishers.
And Lithium, zirconium, uranium, titanium, and powdered aluminum fires can be controlled and extinguished with a unique Special extinguisher with an extinguishing agent as Ternary Eutactic Chloride (TEC).
ABC TYPE MODULAR
A-ONE presents another modular type clean agent along with range of powder automatic fire extinguisher which keep guard and extinguishes fire quickly and efficiently especially in close places where fire could cause extensive damage if not detected and extinguished in time.
FEATURES
An Automatic Detection and Suppression System together in a single unit quite unlike any other system available in the market.
Automatic round-the-clock protection.
Available in individual units or as a Complete system.
Automatic, hence no human involvement, reducing the chances of injury and accidents to virtually zero.
Proves to be the most economical when compared and no surface relaying.
Reusable cylinder as it is not based on aerosol technology. Hence, most economical.
Non-Freezing & long-lasting.
Provides securities in case of emergencies and power failure without power backup.
Rechargeable and easy to service.
The extinguishing agent is also available with Mono Ammonium Phosphate Powder.

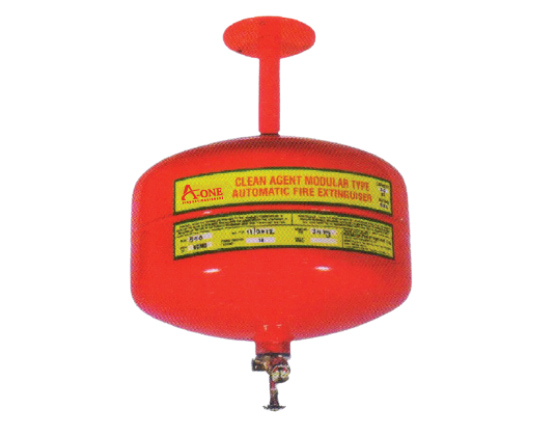

DuPont FE36 CLEAN AGENT MODULAR
A-ONE presents modular type FE36 clean agent gas along with a range of gaseous automatic fire extinguisher which keeps guard and extinguishes fire quickly and efficiently especially in close places where the fire could cause extensive damage if not detected and extinguished in time.
FEATURES
Provides concentrated fire protection for vital equipment.
Highly cost-effective compared to automatic fixed fire protection systems.
It is a portable unit, easy to install and re-locate.
mported pressure gauge fitted for instant verification of functionality and reliability of every unit.
Automatic and reliable security round the clock.
Provides security in case of emergencies and power failure without power backup.
Rechargeable and easy to service Clean Agent Extinguish is also available with agent HCFC or HFC base - EPA and snap approved.
Comparative Advantages of FE - 36
It does not contain d-limoene, which is a Flammable non-volatile residue. Extinguishing agents containing d-limoene may leave a coating of d-limoene. In FE-36 variation between atmospheric temperature and boiling point is less, hence it does not leaves any condensed moisture as in the case of Coe.
FE 36 is not scheduled for phase-out as HCFC like Halotron I, which contains Chlorine. The B2 of FE 36 is 1.40C, hence is discharged as gas, unlike Halotron I, which conies out as a liquid. The Extinguishing concentration of FE 36 is well above NOAEL and LOAEL values. NO CL2 BR2 . NO PHASEOUT: MONTREAL PROTOCOL.

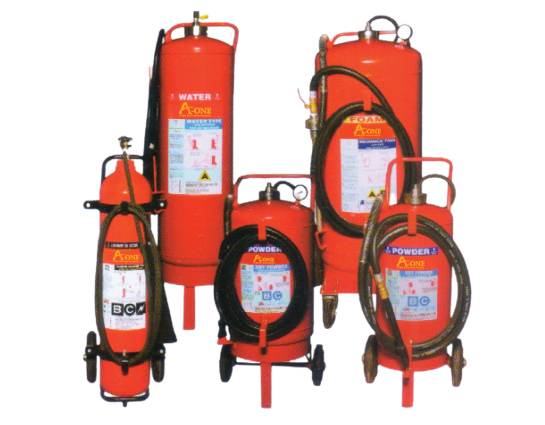

DCP TROLLEY MOUNTED
Features a combination of mobility, 1-person operation & fire-killing power. A-ONE Units utilize a regulator to maintain a consistent operating pressure and Flow throughout the total extinguisher discharge.
MECHANICAL FOAM & WATER TYPE TROLLEY MOUNTED
Features a combination of mobility, 1-person operation & fire-killing power. A-ONE Units utilize a regulator to maintain a consistent operating pressure and Flow throughout the total extinguisher discharge.
Co2 TYPE TROLLEY MOUNTED
A-ONE CO2 GAS extinguishers are characterized by their high performance for fires involving an electrical rick like computers, office equipment, and generators, etc. CO2 is non-conductive, clean, and safe, ensuring minimal damage to electrical equipment and furnishings.

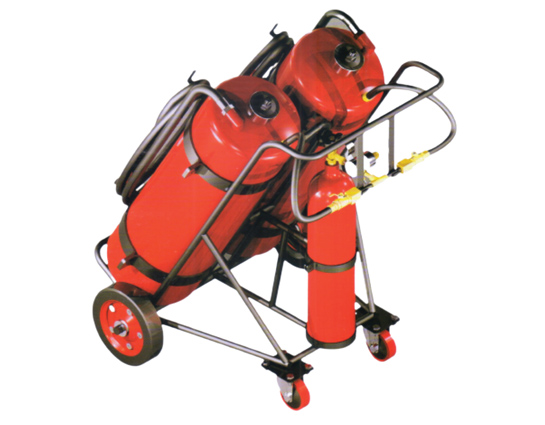

WHEELED EXTINGUISHER TYPE TWIN AGENT 50 + 50 (With External Nitrogen Cartridge )
The trolley fire extinguisher with double extinguishing, also called Twin agents, is constituted from an only trolley on the strong rubber wheels mounted spheres, and from two tanks charged with powder ABC/SBC (on request) / PBC (on request) and with foam, A.F.F.F concentrate. The combined action renders them unsurpassable in the fight against the fire. On great fires of inflammable liquids, the foam action creates a sealing effect that pulls down Flames, and in case the extinction has not been obtained, the powder easily extinguishes the residual Flames. The foam action pulls down Flames and reduces the heat drastically, allowing an approach and successive use of the powder
TROLLEY FRAME
The trolley is made of a steel tube with a rubber wheel of 300 mm diameter.
The cylinder is independent of the frame trolley giving advantages for better safety avoiding welding on its body.
EXTINGUISHER UNIT
Both foam & powder cylinders are made of mild steel tested at 35 kg/cm2.
A larger diameter threaded ring nut is welded on top of the cylinder for easy charging and internal inspection during periodic testing
Ring nut is screwed to forged brass cap with built-in safety valve with calibrated spring made of stainless steel to guarantee calibration in time and to withstand worst atmospheric conditions.
PRESSURE REGULATOR
The discharge of nitrogen for the pressurization is controlled by an intermediate pressure reducer calibrated at 12 bar-14 bar to obtain uniform discharge at constant pressure.
Two on/off valves were placed between the reducer for the cylinders to allow independent pressurization. The cylinders are pressurized for 15 secs after which the spray nozzles can be active for discharging foam & powder.
CYLINDER PROPELLENT
6.8 Itr nitrogen EKC cylinder complete with handwheel valve for quick pressurization of foam and powder cylinder fixed to the rear part of trolley tested at 250 bar charged at 200 bar
Before painting body is cleaned with deep sandblasting assuring a raw surface for a perfect and strong grasp of enamel paint, resistant to scratches and knocks as well to corrosive weather conditions.
DISCHARGE APPARATUS
Supply with two hoses of 5 mt length, made in rubber with reinforced textile braided wire; at the end there is a unique rotating ball-valve and a forming foam air aspirating allow nozzle for controlling the discharge.
EXTINGUISHING AGENT
POWDER
Dry chemical powder ABC. The basic components of dry ABC powder are ammonium phosphate and ammonium sulfate with special silicones additives enabling easy Flow discharge and avoiding any caking process. Dry powder is not corrosive, not abrasive, non-toxic for humans and animals. On request can be supplied with monex or special BC or with 90% MAP
FOAM
KV fire Foam concentrate is the most powerful product. It is simply water with an addictive AFFF based specially formulated compound for the best sealing effect.
TORQUE FORCE
The valve is screwed down on the nitrogen cylinder with a torque force between 13.2 e 15.2 kgm.
The cap is screwed down on the powder/foam cylinder with a torque force between 1.5 e 1.6 kgm. The torque force for the lose and the pipe is between 1.5 e 1.6 kgm.
The torque force for the safety device is between 1.5 e1.6.
KV fire Foam concentrate is the most powerful product. It is simply water with an addictive AFFF based specially formulated compound for the best sealing effect.
PERIODIC INSPECTIONS, SERVICING, AND TESTS
To keep the fire extinguishers in perfect working condition, we recommend its maintenance according to IS:2190 standard.
MAINTENANCE
To keep the fire extinguishers in perfect working condition, we recommend its maintenance according to IS:2190 standard.

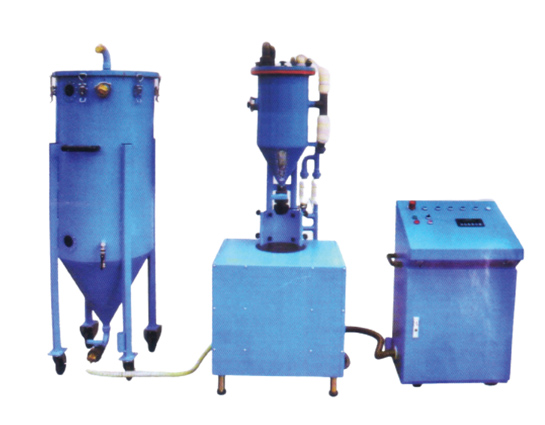

PORTABLE POWDER FILLING EQUIPMENT
The machine is used for filling dry chemical powder (DCP) into fire extinguishers as well as for transferring DCP from fire extinguishers to storage containers without spillage or emissions of the powder to the surroundings.
FEATURES
Selling Powder Filling Unit:
A-ONE SPS-controlled powder emptying and filling unit for the exact filling of portable extinguishers of all makes and sizes Filling takes place out of a bag or a fire extinguisher as well as out of storage tank (e.g. 250 kg - accessory). The extinguisher is filled directly through the powder filling unit in continuous operation on setting the requested weight.
The A-ONE is equipped with an electronic scale that switches off on reaching the preset filling weight. The scale can be programmed with filling weights which can be activated according to the weight required.
The weights are indicated on the operating pane. The filling of movable extinguishers is to be carried out with the help of a special filling adaptor.
The unit is equipped with:
High - quality, self-cleaning filters Programmable digital scale, 10 g resolution for automatic cut-off on reaching the filling weight. Powder tank for inter storage of extinguishing powder up to 30 Kg. Lockable ball valves.
An advantage is the diagonally positioned, removable sieve, which retains lumps and contamination.
The window for powder control Powder suction hose 32mm, length 2 m with couplings Connection for Fluidization to aerate the powder inside the storage silo Sound absorber for sound isolation Powerful, low maintenance vacuum pump.
